Magnetic Switch

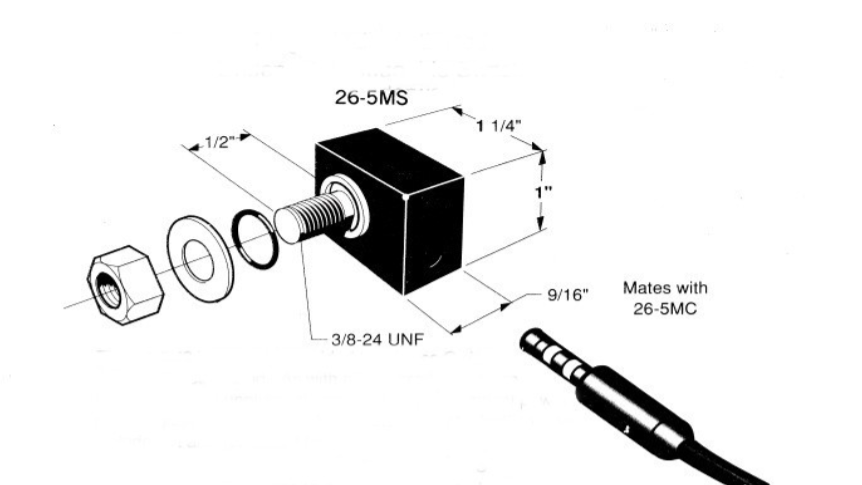

MAGNETIC SWITCH 26-5MS

The 26-5MS is neoprene molded to a brass O-ring sealed mounting stud. As with all our

products, it can be plugged and unplugged underwater with electrical power de-energized.

Operation is by remote magnet. Aplications include but are not limited to:

. Water Current Meters

. Valve Position Indicators

Mates with:

26-5MC

Magnetically Activated Underwater Pluggable Switch De-energized

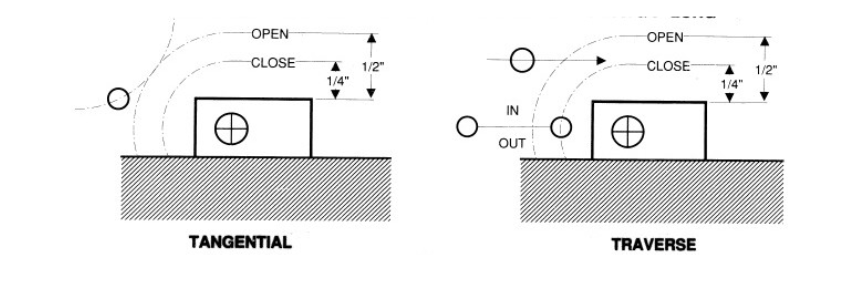

Typical Actuation using ALNICO magnet 1/4 “ O.D. X 3/4 “ long.
